Gauge Valves

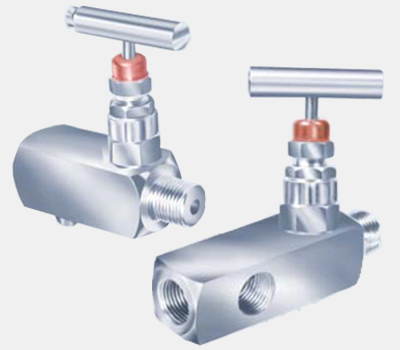

Block Valve with Bleed Plug Gauge Valves: Needle Valve with Down Stream vent for usage with Static Pressure protecting the Instrument Gauge with contaminated fluids and constant pressure, Bleed Plug is provided so as to release the Fluid/Pressure from Instrument side after use. Are specially designed & manufactured for use in corrosive & hazardous environment.

Multiport Gauge Valves: Needle Valve with Blanking Plug & down stream Bleed Valve for usage with Static Pressure protecting the Instrument Gauge with contaminated fluids and constant pressure. Bleed Valve is provided so as to release the Fluid/Pressure from Instrument side after use. Are specially designed & manufactured for use in corrosive & hazardous environment.

Block & Bleed Gauge Valves: Design for use with gauge switches or Pressure Transmitter these Gauge Valve incorporates two valve with single outlet that combines isolation, calibration and venting. Are specially designed & manufactured for use in corrosive & hazardous environment.

Specifications:-

• Bonnet Design: Screwed Bonnet.
• End Connection: NPT,BSPT (Male & Female).
• Packing: PTFE, Grafoil, Graphited Asbestos & Teflon Asbestos.
• Testing: Valves are tested 3000 psig Hydraulically & 150 psig Pneumatically / 1.5 times then working pressure.
• Temperature Rating: PTFE-up to 200^°C / Grafoil-up to 350^°C

Features:

• - One piece body bar stock construction Non-Rotating Vee Tip design, which forms bearing joint with the Stem eliminates rotation between plug & seat at closure. This prevents scoring and galling up the valve seat and ensure long life in repetitive shut off service.
• - Non-rotating, Rotating,Regulating Stem Tip.
