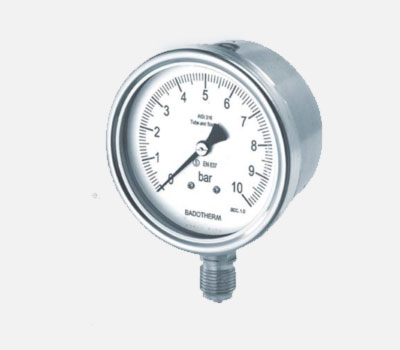

Pressure Gauges
Specification :
- Size : 55mm, 68mm, 80mm, 10mm, 150mm
- Case : Drawn steel stoved enameled black.
- Bezel : Drawn steel stoved enameled black.
- Sensing element : Bourdon's 'C' shaped tube for ranges up to 100 kg/cm2. For higher ranges coiled shape tube.
- Element material : Brass
- Socket : Brass
- Movement : Brass,
- Dial : Tin / Aluminium with black markings on white background,
- Pointer : Steel / Aluminium in black,
- Window : Plain glass, Joint : Hard soldered
- Temperature rating : 120°C,
- Accuracy : ± 2% of F.S.D. from 10% to 90% of scale and ± 3% for rest of scale
- Mounting Type: Bottom direct, Bottom Surface, Center back direct, Center back panel,
- Center back bracket, Side back panel, Side back bracket.
- Thread Connection : 1/4" BSP(M), 3/8” BSP(M), NPT(M) thread on request.
- Specified detail while place an Order : - Dial size, - Type no. & thread connection, Pressure range, Accessory, Optional feature, If special application,
