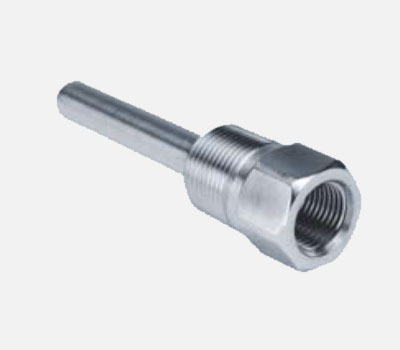

Thermowells

A wide range of Thermowells for almost all temperature sensing requirements in high and low temperature, high pressure, high velocity, corrosive media can be offered. Screw threads, Weld on well for directly welding on process equipment and Flanged wells with Flanges as per ANSI, BS, DIN standard.

Specifications:-

• Available in: Standard type & as per customer specification, Bar stock drilled / fabricated, flanged, screwed, pattern.
• Type: Threaded, socket weld, flanged, Weld-in type.
• Contour: Tapered, Straight, Stepped,
• Process Connection: Threaded Type..........1/2” NPT, 3/4” NPT, 1” NPT
  Pipe soc. Weld Type………..3/4”, 1”
  Flange Type…………………….Size : 1” to 4” / class : 150# to 2500#
• Material: Brass, CS, SS, SS 316, SS 304, Alloy Steel.
• Testing: Thermowells are tested up to 1000 psig Hydraulically & 150 psig Pneumatically.
• IBR CERTIFIED ALSO AVAILABLE
