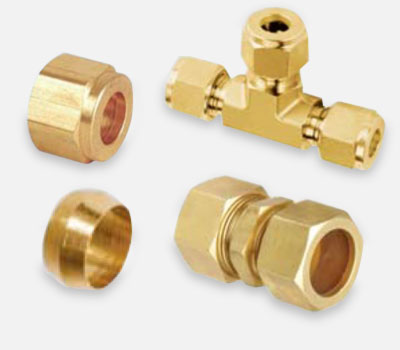

Olive Type Compression Tube Fittings

Olive Type Compression Tube Fittings


  • Size: 1/8” to 3/4”
  • Standard Item: Male Connector, Male Elbow, Male Branch Tee, Female Connector, Union, Bulkhead Union, Union Elbow, Union Tee, Tube Cross, Line Plug, Olive (for Copper Tubing), Olive (for Nylon/Teflon Tubing), Olive Nut, Check Nut.
  • End Connection: OD Tube, NPT, BSP, BSPT, ISO
  • Material: Brass
  • Thread Conformance Standard: NPT as per Std. ANSI B1.20.1
  • Types of Fittings: Male Connector, Male Elbow, Male Branch Tees, Female Connectors, Union, Reducing Union, Bulkhead Unions, Union Elbows, Union Tees, Tube Cross, Line Plug, Olive, Olive Nut, Check Nut.
  • Testing: BrassFittings are tested up to 1000 psig Hydraulically & 150 psig Pneumatically.


  • - CHAMP Single Ferrule Olive type Brass Tube Fittings consists of three precision machined components for a reliable LEAK PROOF JOINT.
  • - Olive Ferrule provides a excellent Mechanical and anti vibration hold on the tube.
  • - The Olive Single Ferrule provides a pressure seal between the tube and the body.

To provide a reliable, leak-proof connection in Instrumentation and Process Tubing systems. CHAMP Olive Type Tube Fitting are available assembled and ready to use with Copper and Nylon/Teflon tube. All you need is the right selection of Tubing. For assembly of Fitting just insert the Tube in Fitting and tighten the nut 3/4 turn with spanner.
