Integral Orifice Plate Assembly

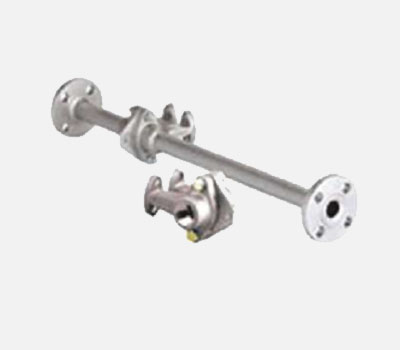

An Integral Orifice Plate assembly is integrally mounted with the measuring instrument. It is a compact & complete flow meter device without need of Impulse Piping. The assembly includes Integral Orifice Plate, Bodies, Studs, Nuts & Gaskets. Bodies with socket-weld or threaded end connections are available. IOPA with upstream & downstream piping with flanged ends are also available.

Specifications:-

• Line Size: 15 – 40mm (1/2” – 1-1/2”NB)
• Accuracy : ± 2%.
• Material of plate : AISI 316, AISI 304, Hastelloy C, Monel, other on request.
• Material of body: A351 Gr.CF8M, A216 Gr.WCB, A105, A182 Gr.F316
• Material of gasket : PTFE.
• Testing will be 1.5 times than working pressure.
