Syphons

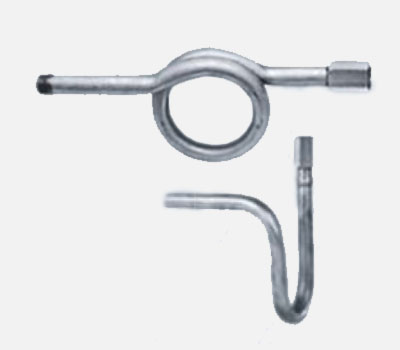

Coiled Pipe Syphon are used for steam pressure measurement and are generally connected between Pressure Gauges and Process Taps to prevent line steam coming in direct contact with instruments. Further more these Syphon allows a fair deal of heat dissipation protecting pressure gauges from high temperatures which could have impaired their good operation and their life.

Specifications:-

• Type: Coil Type, Pig Tail Type, U type
• Material: Brass, Copper, SS 316, SS 304, SS 213, SS 312, C.S. (A 106 Gr.B), Alloy Steel & P22/11
• Size: 1/4” to 1”
• End connection: Tube / Pipe SW, Screwed NPT, BSP Male, Female & Swivel type.
• Pipe schedule: 40, 80, 160, & XXS
• Testing:Syphon are tested 1000 psig Hydraulically & 150 psig Pneumatically.
• IBR CERTIFIED ALSO AVAILABLE
