Orifice Flange Assemble

Orifice Flange Assemble

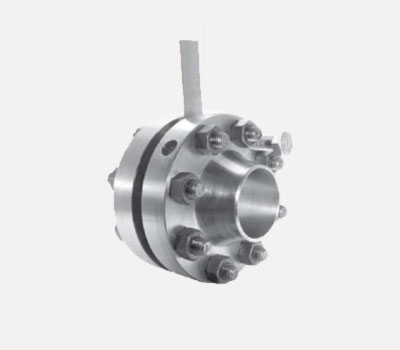

An Orifice plate assembly provides maximum economy with minimum maintenance. It consists of Orifice Plate, Studs, Nuts, Jack Bolts & Gaskets. Flanges are according to ANSI, DIN, JIS standards. Type of Orifice Flanges includes Weld Neck, Slip on, RTJ and T & G.

Specifications:-

  • Line Size:15mm (1/2” NB) to 500mm (20”NB)
  • Pressure tap: Flange tap, Corner tap, Radius tap (D & D/2 TAP).
  • Accuracy : ± 1%.
  • Material of Flange : A105, A182-F316, A182-F304, A182-F11, A182-F22.
  • Testing will be 1.5 times than working pressure.
