High Pressure Forged Pipe Fittings

High Pressure Forged Pipe Fittings

CHAMP manufacturing comprehensive range of High Pressure forged Pipe Fittings for Process Control, Instrumentation, Hydraulic & Pneumatic application which meet general & critical needs of Petrochemical, Chemical,Fertilizer, Steel Plant, Offshore & Power Generating Industries.

Specifications:-

  • Size: 1/4” to 2”
  • Type: Low, Medium & High Pressure, Screwed & Socket-Weld Pipe Fittings.
  • End Connection: Socket-Weld & Screwed (Threaded with BSP,BSPT, NPT -Male, Female).
  • Material: SS Forged Pipe Fittings as per ASTM A182 & Bar Stock Fittings as per ASTM A276,
    Alloy Steel Pipe Fittings as per ASTM 182 F22, F11, F5,
    Carbon Steel Forged Fittings as per ASTM A105/A181

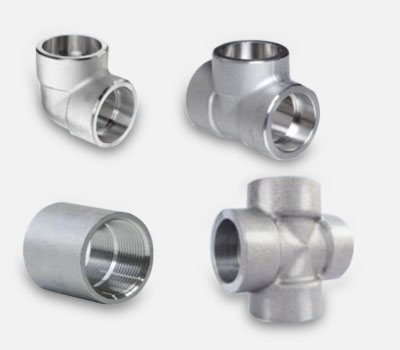

  • Types of Fittings: 90° Elbows, Crosses, Tees, Couplings, Half Couplings, Caps, Hex Head Plugs, Hex Head Bushings (Socket-Weld & Screwed)
  • Pressure Rating:
    • - For pressure class 3000 Fittings are tested up to 3000 psig Hydraulically & 150 psig Pneumatically.
    • - For pressure class 6000 Fittings are tested up to 6000 psig Hydraulically & 150 psig Pneumatically.
    • - For pressure class 9000 Fittings are tested up to 9000 psig Hydraulically & 150 psig Pneumatically.(Only for Socket Weld).
  • Standard: As per ANSI B16.11
  • IBR CERTIFIED ALSO AVAILABLE
