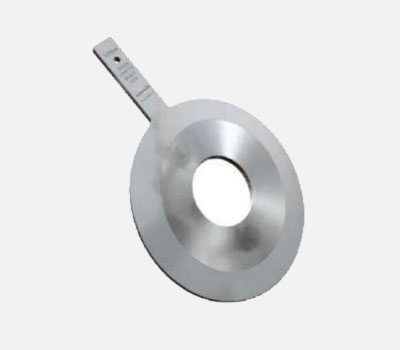

Orifice Plates

Orifice Plates

An Orifice plate is a most popular flow element. Orifice Plates are precisely manufactured from the finest materials with close tolerance to match ISO 5167, BS 1042 and API 2530 & AGA report 3. Mounting between flanges or carrier rings are available.

Specifications:-

  • Line Size:15mm (1/2” NB) to 250mm (10” NB).
  • Type: Concentric square edge, Quarter of circle, Conical entrance, Segmental, Eccentric.
  • Accuracy : ± 1%.
  • Materials : AISI 316, AISI 304.
  • Testing will be 1.5 times than working pressure.
