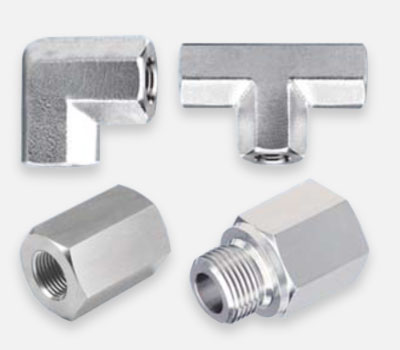

Precision Pipe Fittings

The CHAMP threaded Pipe Fittings permit connection between components and system which use BSP, NPT threads, high quality, leak-proof Threaded Fitting for Process, Power, Automation and Instrumentation application. These Fittings to provide secure leak-proof joints capable of satisfying high pressure, vacuum and vibration applications.

Specifications:-

• Size: 1/8” to 1”
• End Connection: NPT, BSP, BSPT (Male & Female).
• Material: Brass Forged Pipe Fittings as per IS 3488, Extruded Pipe Fittings as per IS 319,
  SS Forged Pipe Fittings as per ASTM A182 & Bar Stock Fittings as per ASTM A276,
• Thread Conformance Standard: NPT as per Std. ANSI B1.20.1
  BSPT as per Std. BS 21
• Types of Fittings: Hex Nipple, Hex Coupling, Adapter, Bushing
• Testing:
  • SS Fittings are tested up to 3000 psig Hydraulically & 150 psig Pneumatically.
  • Brass Fittings are tested up to 1000 psig Hydraulically & 150 psig Pneumatically.
