Oval Flanges

Oval Flanges

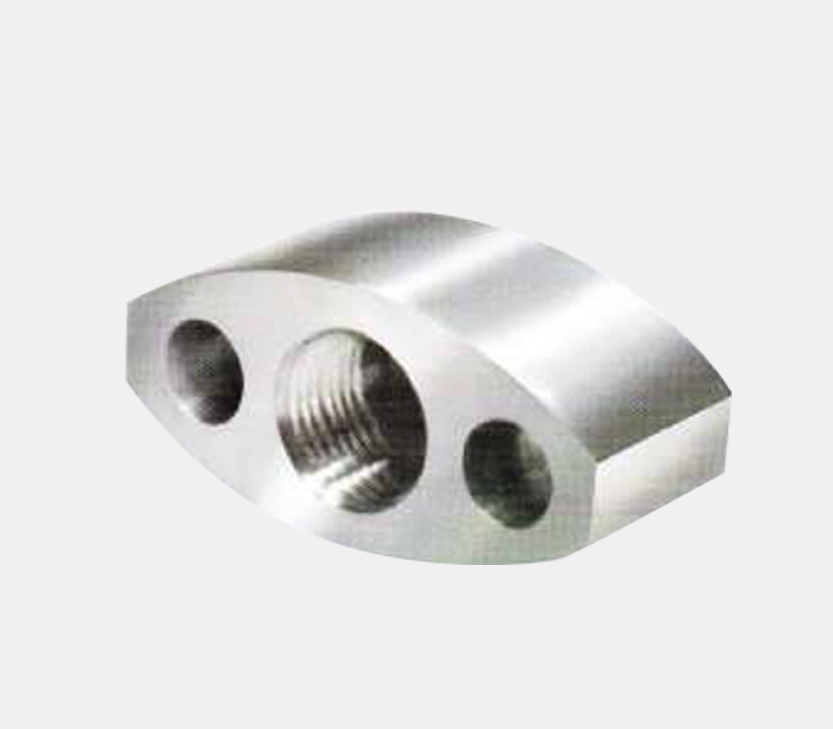

CHAMP Oval Flanges are available in a series which includes integrally machined CHAMP Fittings. It avoids use of tapered thread connector by selecting standard flange to flange manifolds together with range of compression Fittings. It also reduces potential leak paths. These Oval Flanges can be supplied with connections upto 1/2" OD Tube. For Pipe size upto 1/2" Butt Weld connections are also available. Flanges are supplied with two 7/16” UNF x 1.34” length, Carbon Steel Bolts and one Teflon sealing ring.

Specifications:-

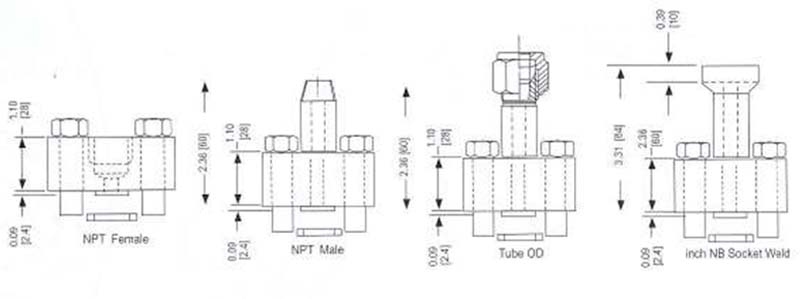

  • Connection: NPT Female, NPT Male, Tube OD, Socket Weld.
  • - Graphite gaskets are available for applications over 500°F (260°C),
  • - Blind flanges are also available,
  • - For Butt Weld end please specify Pipe schedule.
